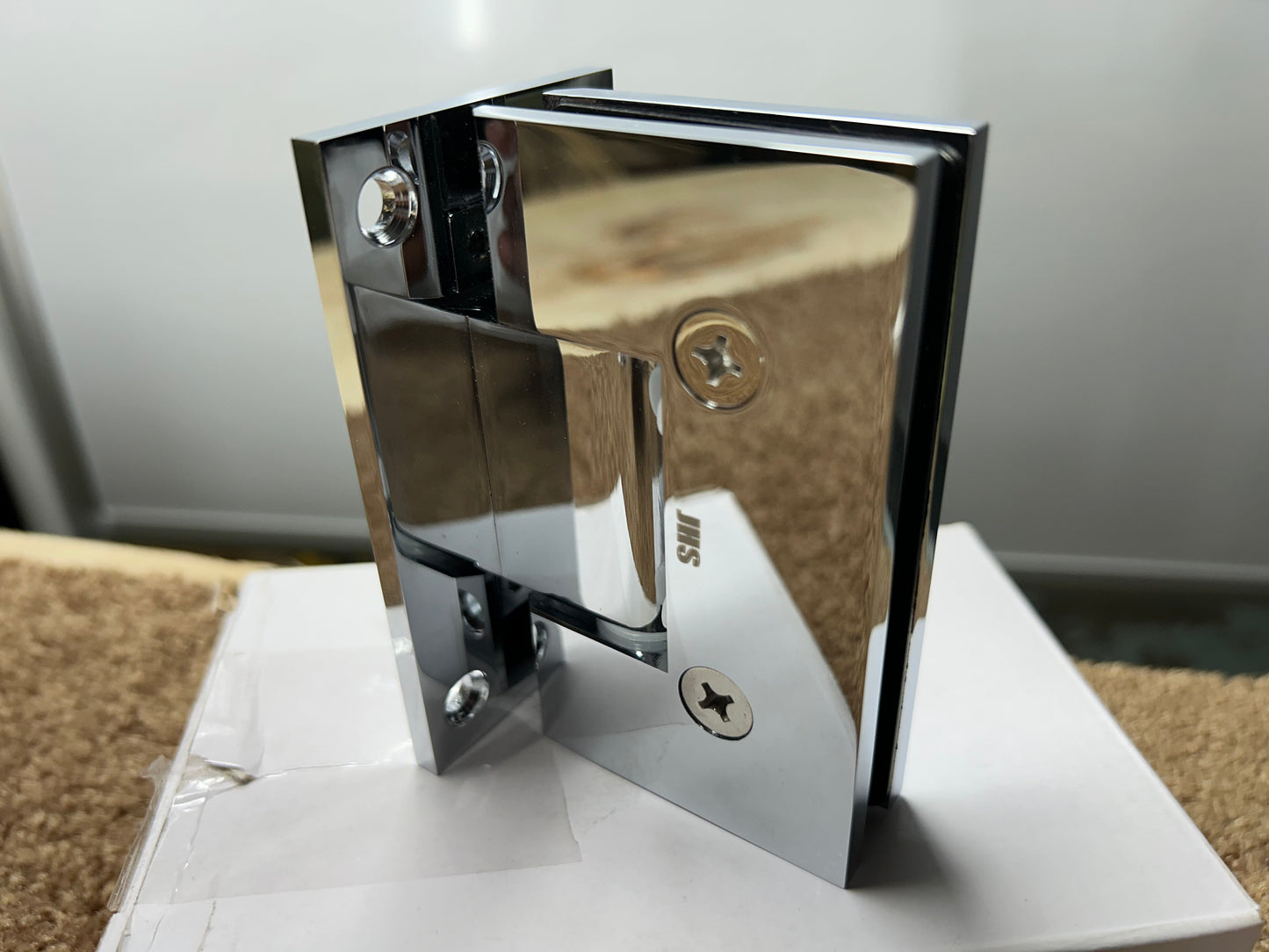

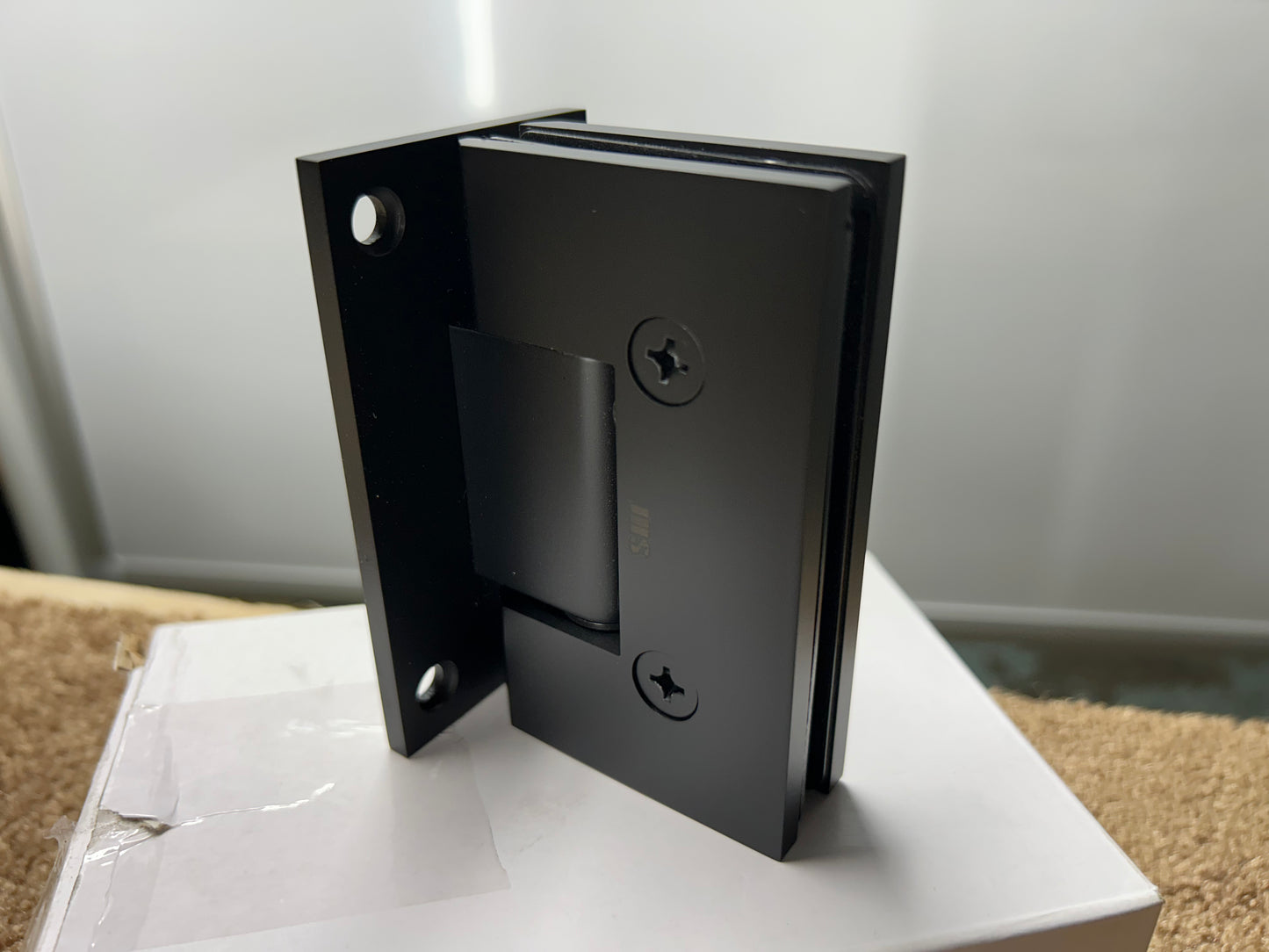

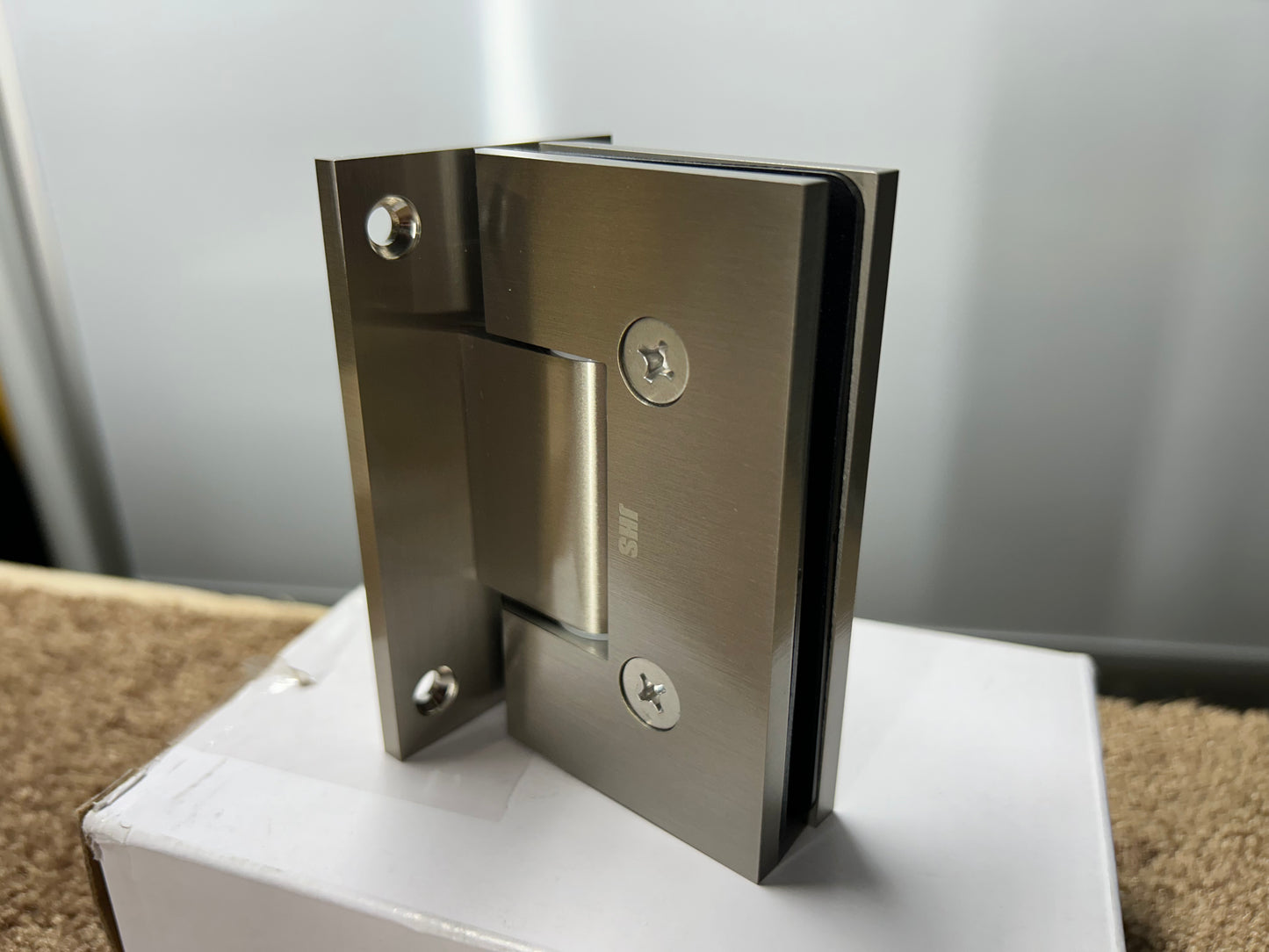

Heavy Duty Wall Mount Hinge - 3 Colors Available

The JHS Heavy Duty wall mount hinge is designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Heavy duty Hinges are constructed of stainless steel  with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. It allows the  heavy Duty Hinge to be used with the same cut out CRL "mouse-ears" cut-out, or in some cases fit competitive "mouse-ear" cut-outs. On the other hand, to enable increased adjustability, the two pins can be removed which allows the Vienna Hinge to fit it's own CRL rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. Using two hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters). Using three hinges with 3/8 and 1/2 inch glass (10 and 12 millimeters) the hinge will hold up to 140 pounds (63 kilograms) with a maximum width of 36 inches (914 millimeters). Specifications:

• Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter)
• Tempered Safety Glass
• Construction: Stainless steel
• Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out
• Includes: One Hinge, Gaskets, Screws and The template is same as CRL
